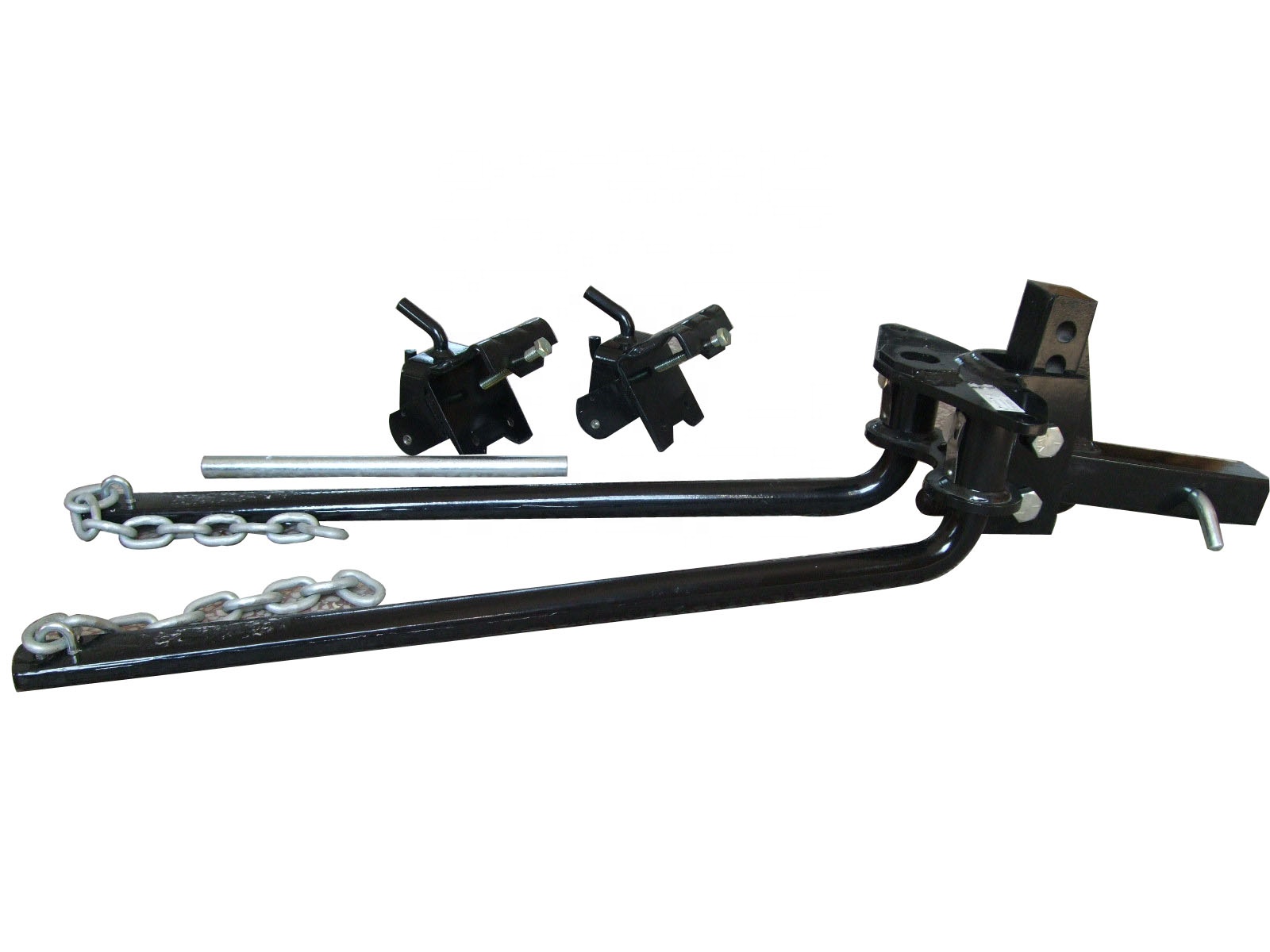

600 lbs Round Bar Weight Distribution Hitch

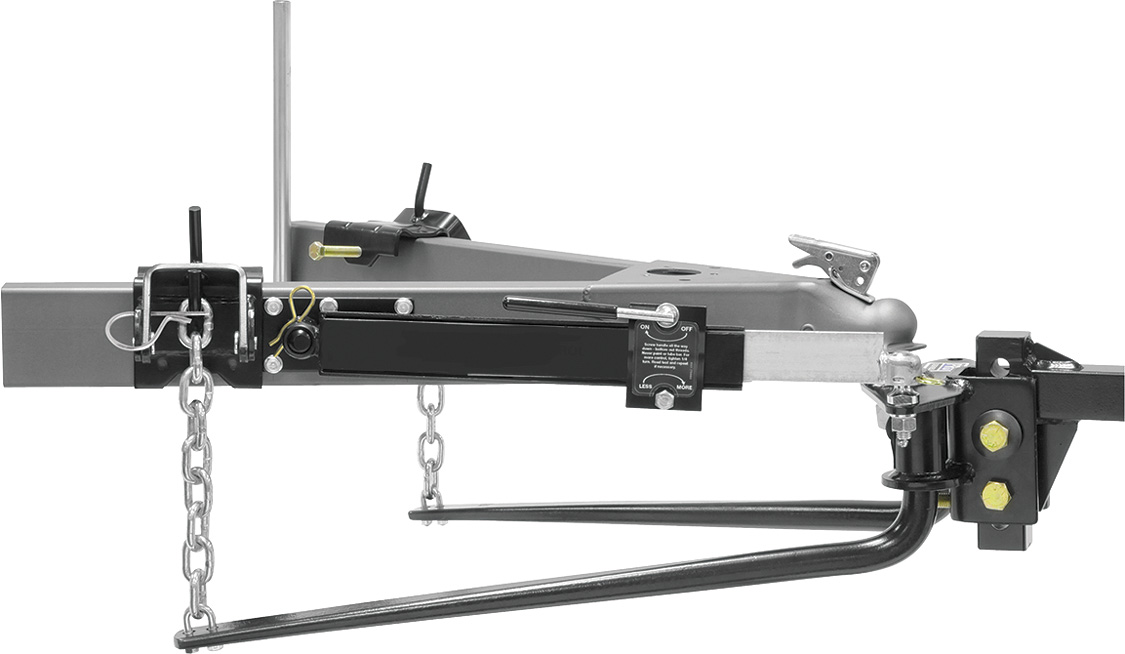

600 lbs Round Bar Weight Distribution Hitch-Provides better control of your vehicle and trailer by applying leverage across the trailer tongue and tow vehicle for heavier loads to be distributed more evenly on the trailer wheels and tow vehicle.this even distribution allows for a more stable ride and better control for braking and steering
600 lbs Round Bar Weight Distribution Hitch is one of most common weight distribution hitch , also a best-selling product in North America and Australia market. It is made of high quality carbon steel, manganese steel, spring steel and other materials through cutting, processing, welding, heat treatment and other advanced technologies. Decades of manufacturing experience, reliable quality-
Round Bar Weight Distribution Hitch can be divided into 600lbs,800lbs and 1200 lbs according to Tongue Wt and Gross Trailer Wt(see below)-
| Des | Max Tongue Wt. | Max Gross Trailer Wt. |
| 600lbs | 400-600lbs | 6000lbs |
| 800lbs | 501-800lbs | 8000lbs |
| 1200lbs | 801-1200lbs | 12,000lbs |
Round Bar Weight Distribution Hitch usually Includes below parts-
| 1 | shank |
| 2 | spring bar |
| 3 | Hook-up brackets |
| 4 | Head |
| 5 | Safety chains |
| 6 | Pin and clip |

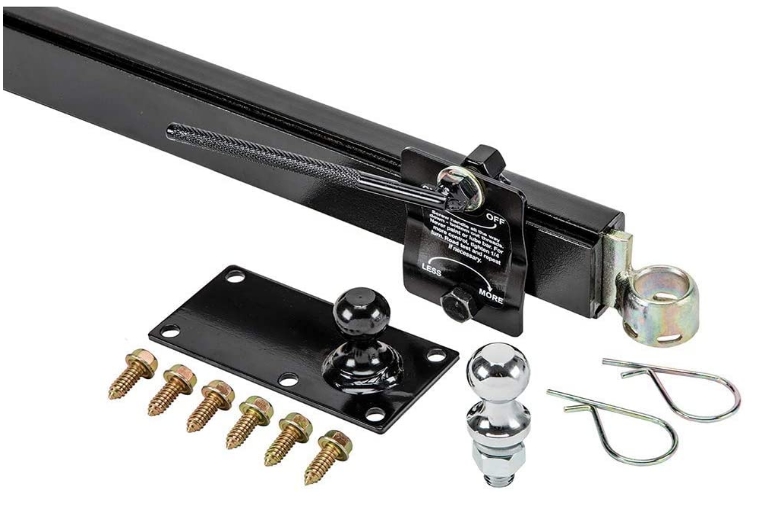

| 7 | match sway control according to customer's request |
Parts show-
1)Bracket for Weight Distribution Hitch -hook bracket accept 5/16" chain,6.35mm thickness frame brecket accept a 1/2"-13 bolt -
2)Head for Weight Distribution Hitch -weld style:with one ∅35mm big hole and two ∅16.66mm small holes,suitbale for 1 1/4 " shank hitch ball.8mm thinckess reinforcement plate and 12mm thickness top plate make it more stronger ,does not bend under heavy pressure.we also have forged style.
3)Shank for Weight Distribution Hitch-made of high quality 1020,standard 50.8mmx50.8mm square steel bar,top and bottom thinckness reinforcing plate .length of steel and position of hole can custom-made according to your request.
4)Spring bar for Weight Distribution Hitch-it is made of immoderate fantastic spring metallic through forging and heat therapy process.
Assembly Drawing-
600lbs Round Bar Weight Distribution Hitch -
Advanced cutting , machining , welding equipment and process ensures the quality of Round Bar Weight Distribution Hitch-
600lbs Round Bar Weight Distribution Hitch -
Tensile testing machine, impact testing machine, hardness testing machine, salt spray testing machine, weld detector and other testing equipment effectively ensure the quality of products. Inspectors are assigned to each process from raw material purchase to packaging and delivery. Regularly test products by batch.
600lbs Round Bar Weight Distribution Hitch -
Automatic packing line, rich packing experience ensure transport safty of Round Bar Weight Distribution Hitch-
Our factory-Total area of 60,000 square meters, the main production equipment more than 100 sets-
Beautiful factory like garden-
Over the past 60 years, we have won the trust and respect of our customers with our excellent product quality and reputation-
Our certificate-
